REKON V1
Dual-ESP32 multi-pentesting device
Prototype Multi-Pentesting Device
Rekon V1 is my ongoing lab project — a multi-pentesting device built around dual ESP32-S3 boards. One ESP handles the interface, storage, NFC, IR… the other one is a dedicated engine for WiFi, Bluetooth, and Sub-GHz work. Both chips talk to each other over UART, so the whole system runs in parallel like a tiny multi-processor setup.
It's still in the prototype phase, so the hardware is raw, experimental, and always evolving.

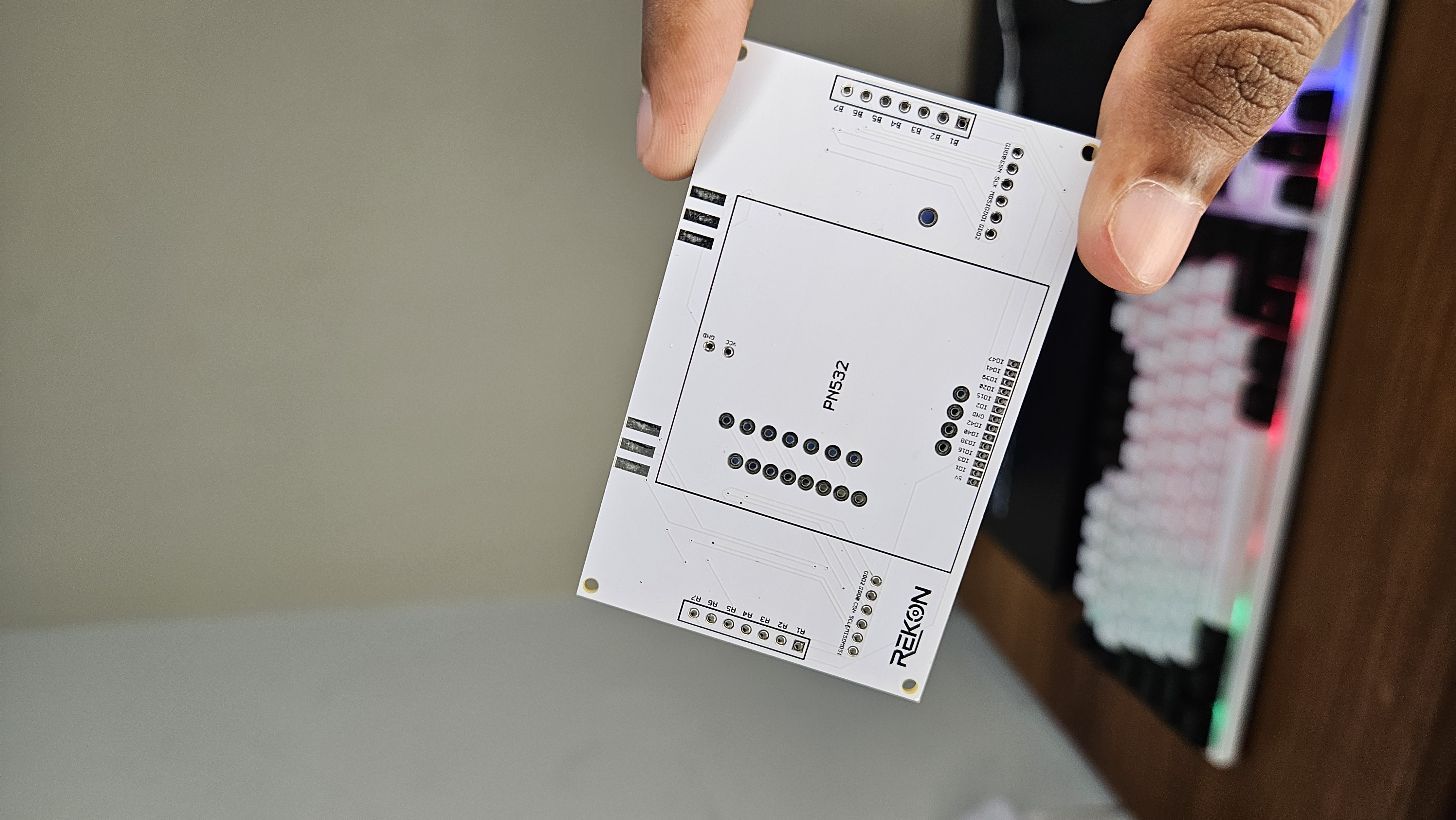

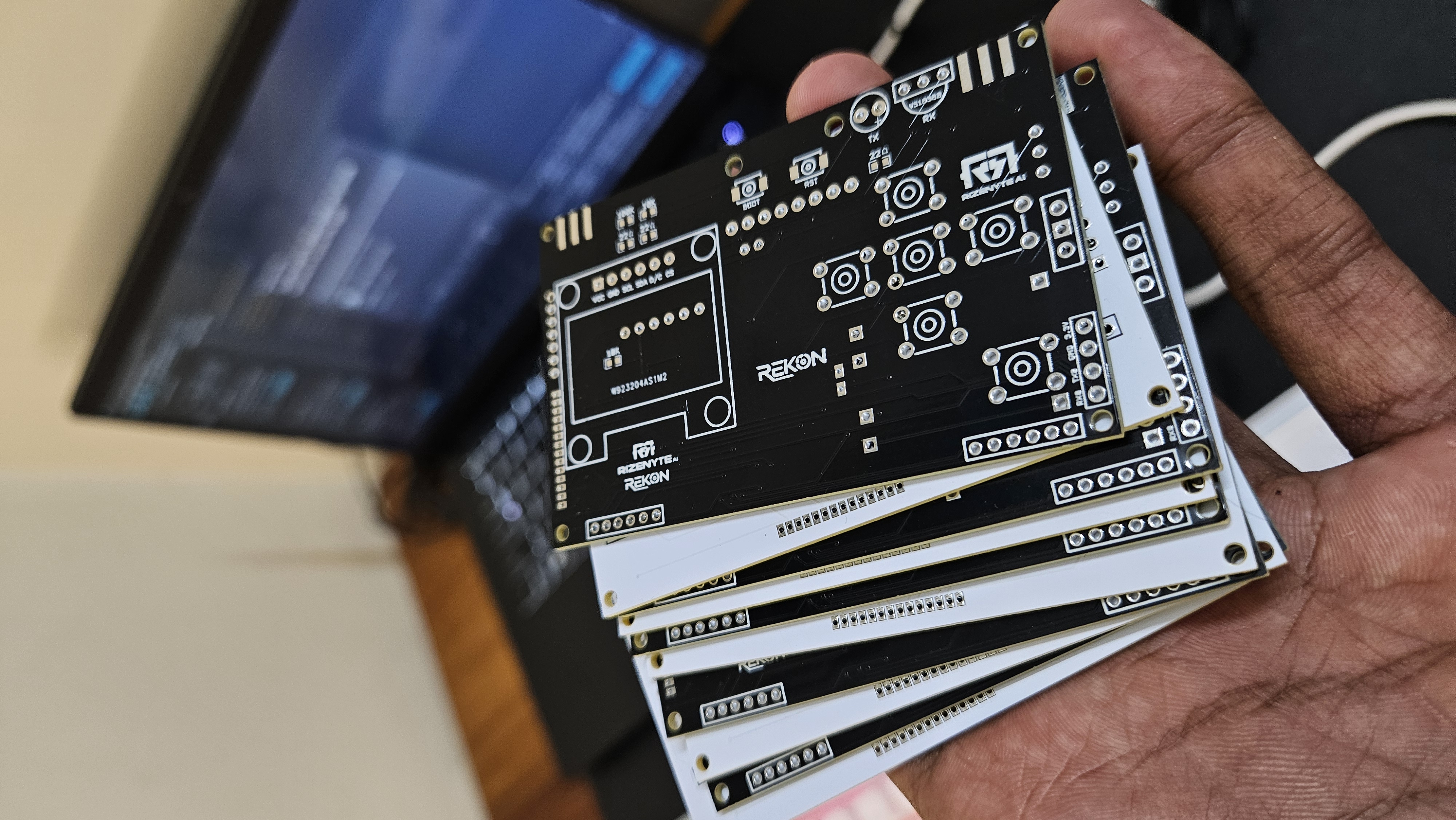

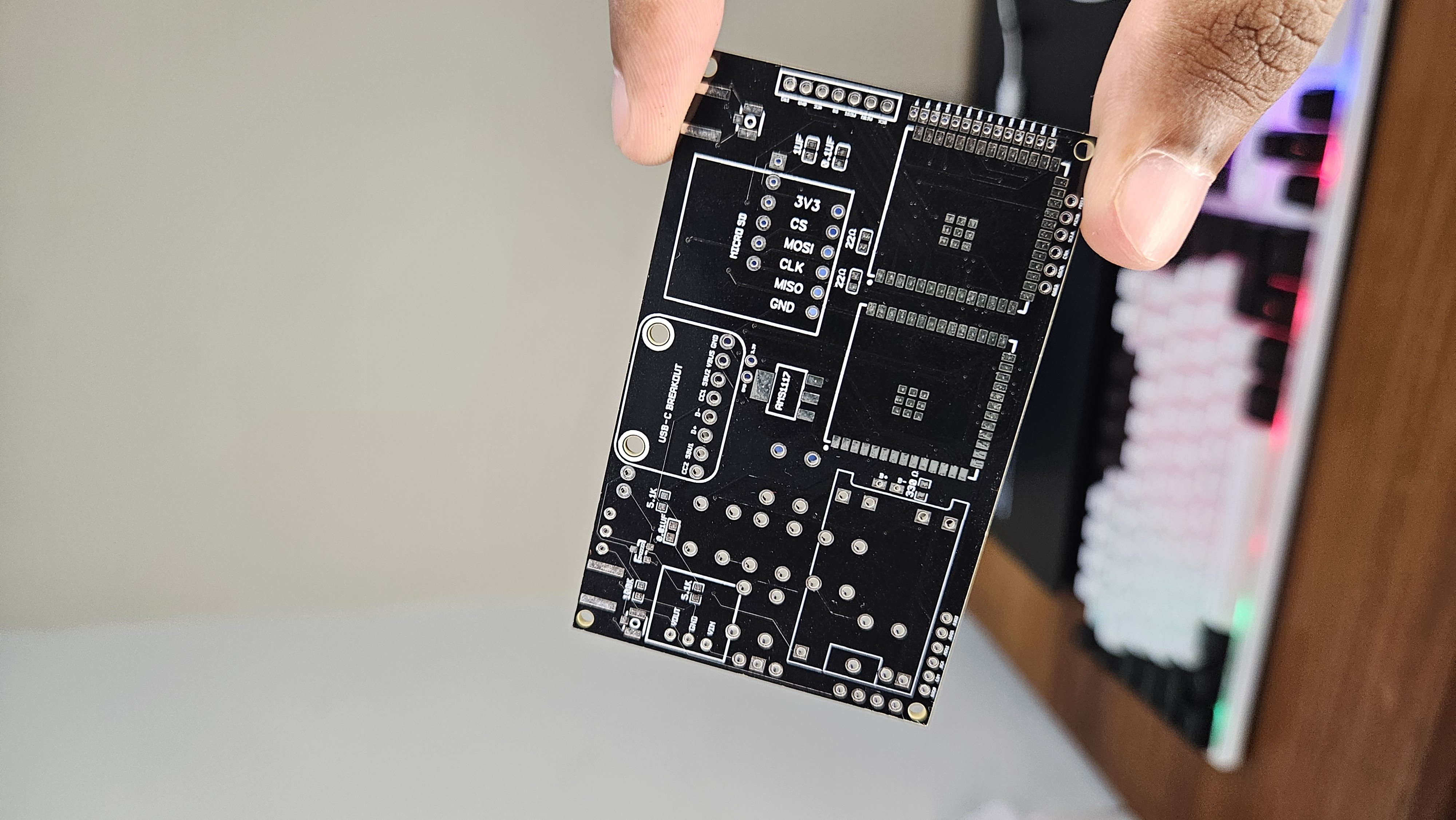

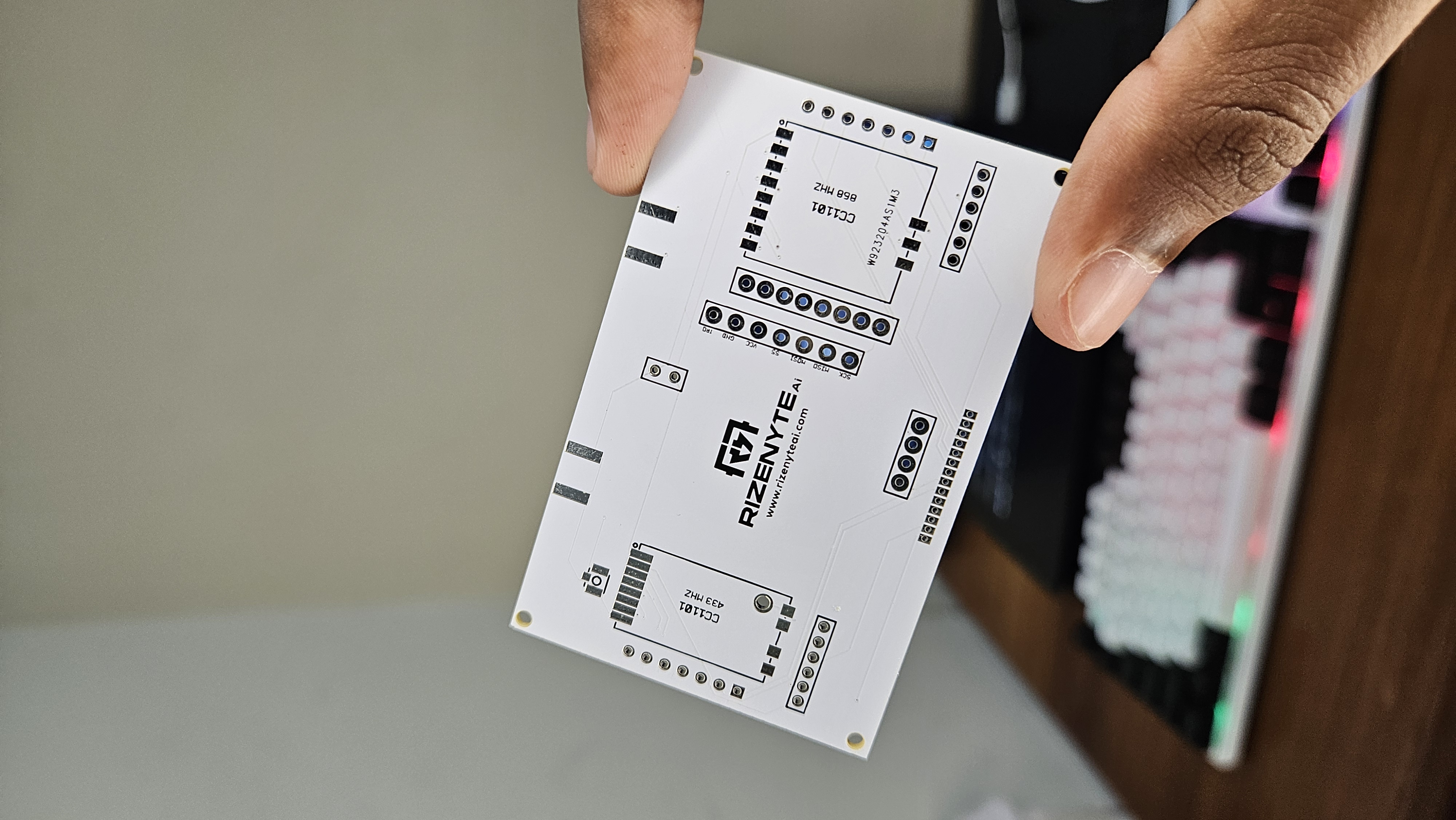

Project Gallery
Current prototype build and development progress
Use arrows to navigate or click the expand button for full view
REKON V1 – Capability Overview
HARDWARE CORE
Rekon V1 is built using:
ESP #1 – MAIN CONTROLLER
This ESP is the part you interact with:
- • Runs the UI and menus
- • Manages NFC through the PN532
- • Handles IR learning & replay
- • Reads and writes files on the SD card
- • Handles the USB HID / BadUSB behavior
- • Connects to the PC through USB-C
- • Stores payloads, logs, dumps, and scripts
ESP #2 – RADIO / NETWORK ENGINE
This ESP handles all radio-heavy tasks:
- • WiFi scanning and test operations
- • Bluetooth/BLE activity
- • Controls both CC1101 radios
- • Raw Sub-GHz scanning
- • Handles packet capture
- • Parallel multi-band radio work
- • Communicates with ESP #1 via UART
NFC / PN532 FEATURES
- • Read NFC tag UIDs
- • Scan different NFC tag types
- • Read/write NTAG
- • Read/write Mifare Classic 1K/4K
- • Dump Mifare sectors to SD
- • Card emulation
- • NDEF read/write
- • Import/export NFC files
- • Anti-collision scanning
SUB-GHz / CC1101 FEATURES
- • Two separate radio modules
- • ASK/OOK modulation
- • Raw signal capture
- • Basic replay for non-rolling codes
- • Simple IoT remote replay
- • Detecting rolling code presence
- • Logging radio activity to SD
- • Dual-band operations
WIFI FEATURES
- • 2.4 GHz scanning
- • Broadcast-heavy modes
- • Capturing handshake-type data
- • Creating test access points
- • Packet-level interactions
- • Device identity spoofing
- • Logging to SD
BLUETOOTH / BLE FEATURES
- • Scan for BLE devices
- • Spoof BLE advertisements
- • Change BLE MAC identity
- • Limited packet interactions
- • Basic device info dumping
- • Logging to SD
IR FEATURES
- • Learn IR signals
- • Replay them
- • Save IR codes to SD
- • Support for multiple IR formats
- • Can act like a universal remote
USB HID / BADUSB FEATURES
- • Keyboard emulation
- • Auto-type behavior
- • Support for script-style payloads
- • Serial shell mode
- • Firmware updates through USB
Work in Progress
This project is still being built, updated, tested, and improved. The hardware and firmware are constantly evolving as I experiment with new features and optimizations.
